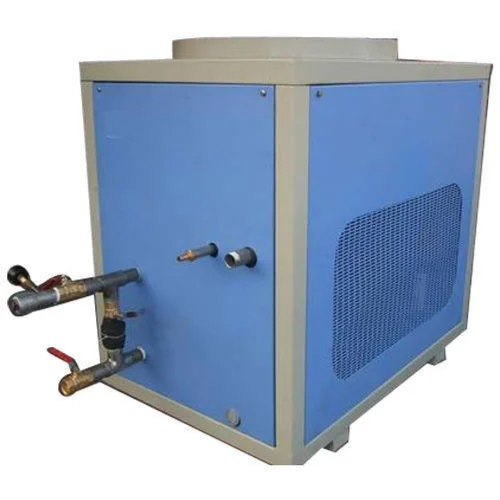

Water Chiller
Description
Life cool series water chiller are specially designed for drinking water applicaons. It comprise Braze plate heat exchanger, stainless steel process pump, Air Cooler Condenser.Chiller are installed with the tanks in closed loop system. It will be reculate the water so the temperature of whole tank will goes down. Flow control, low pressure tripping, Phase sequence protecon, low voltage tripping these all protecons are in this chillers. Life cool series water chiller O O O will be maintained temperature range from 5 C to 30 C to + 1 C capacity from 20tr with 50lpm to 200lpm different flow capacity.
| Capacity | TR | 2.0 | 3.0 | 5.0 |
| Compressor | Type | Reciprocatng | Reciprocatng | Reciprocating |
| Power Supply | V/Ph/Hz | 220/1ph./50 | 440/3ph./50 | 440/3ph./50 |
| Motor Speed | RPm | 1350 | 1350 | 1350 |
| Fan Size Dia | mm | 400 | 400 | 6‐‐ |
| Fan Quanity | Nos | 1 | 1 | 1 |
| Air Flow | m3h | 2900 | 2900 | 4500 |
| Condensor | Fin and Tube | |||
| Evaporator | Plate type Heat | |||
| Cooling Capacity per Hour | Ltr/Hr | 650.00 | 1200.00 | 1500.00 |
| Chiller Pump | LPM | 40 | 40 | 60 |
| Water Inlet | Inches | 1 | 1 | 1 |
| Water Out let | Inches | 1 | 1 | 1 |
| Chiller Water Temp. Out | Deg. Centi | 7 | 7 | 7 |
| Chiller Water Temp. In | Deg. Cen | 12 | 12 | 12 |
| Unit Dimensions (LxWxH) | Inches | 30x21x 42 | 30x21x 42 | 44x28x48 |
| Unit Dimensions (LxWxH | Kg | 80 | 85 | 130 |
| * All Specificaons are approximate and are subject to change without any prior noce | ||||
