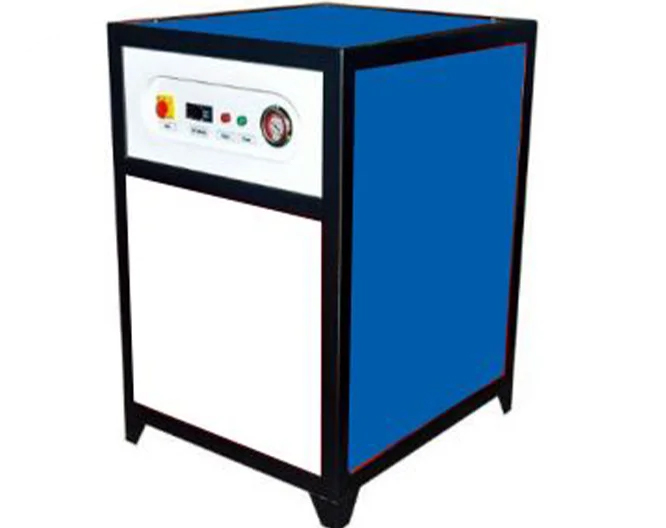

Refrigerated Air Dryer
Description
Copper “TUBE & TUBE” Non Corrosive Heat Exchanger, Disigned to have lower pressure Dorp and Higher Efficiency contains in built centrifugal moisture separator having dead zone to avoid carry over of condensate.
1.PUF Insultation for heat exchanger assembly.
2.Electronic (Digital) timer operated auto drain valve.
3.Universally available refrigeration components like Condenser, Compressor, Fan Motor, Filter, Expansion valve etc.
| Model | Nominal Capacity | cfm m2 /h | Electrical Connecon | 1‐ph 3‐ph | Rated Power KW |
|---|---|---|---|---|---|
| ECORD‐002 | 20 | 34 | 0.15 | ||
| ECORD‐004 | 40 | 68 | 0.20 | ||
| ECORD‐006 | 60 | 102 | 0.40 |
||
| ECORD‐008 | 80 | 136 | 0.50 |
||
| ECORD‐010 | 100 | 170 | 0.60 | ||
| ECORD‐015 | 150 | 225 | 0.90 | ||
| ECORD‐020 | 200 | 340 | 1.20 |
||
| ECORD‐025 | 250 | 425 | 1.40 | ||
| ECORD‐030 | 300 | 510 | 1.60 | ||
| ECORD‐040 | 400 | 680 | 1.90 | ||
| ECORD‐050 | 500 | 850 | 2.30 |
||
| ECORD‐060 | 600 | 1020 | 2.80 | ||
| ECORD‐070 | 700 | 1189 | 3.70 |
||
| ECORD‐080 | 800 | 1360 | 4.20 |
||
| ECORD‐100 | 1000 | 1699 | 5.000 |
||
| ECORD‐120 | 1200 | 2039 | 5.45 | ||
| ECORD‐150 | 1500 | 2550 | 6.80 |
