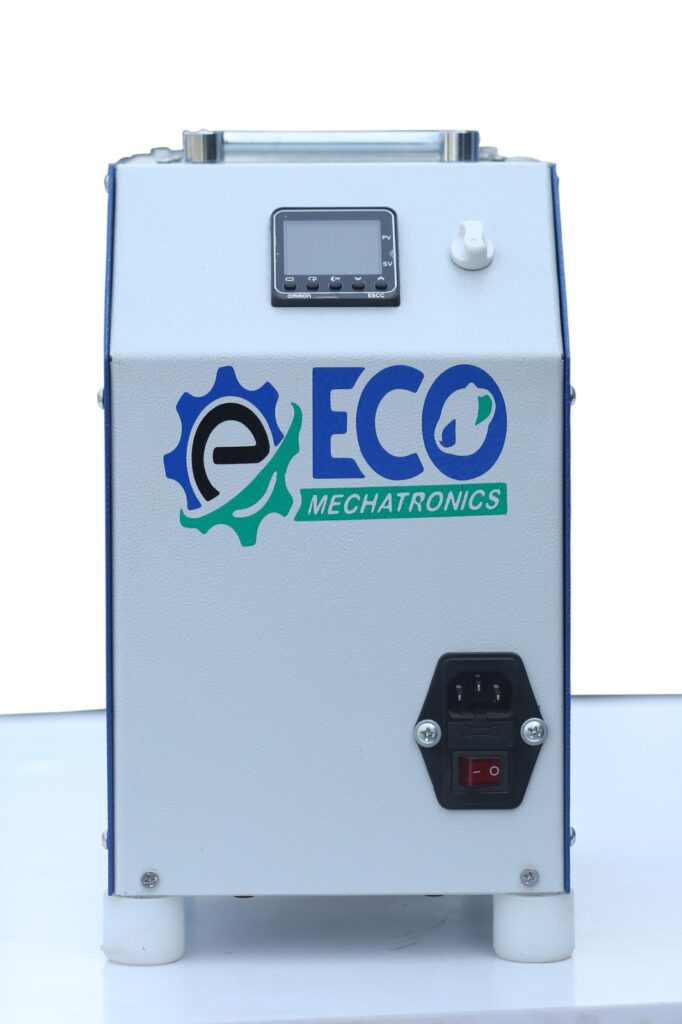

OIL BATH
RANGE : AMBIENT TO 250°C | MODEL NUMBER:- ECM/LTC/1010
Application
- In Calibration laboratories for the calibration of
small, odd-shaped sensors and thermometers. - For On-site Calibration.
- Testing laboratory of RTDs and thermocouples.
- Process industry in-house calibration.
- High accuracy and stability.
- Low weight and compact design.
- Simple operation.
- Temperature Range: ambient to 250°C
- Display
- Resolution 0.1°C
- Control accuracy: ± 0.1°C
- Thermal in-stability: ± 0.08 °C @100 (after stabilization time of 20minutes)
± 0.12 °C @250 °C (after stabilization time of 20 minutes). - Thermal Non-uniformity (Radial) ± 0.08 °C (after stabilization time
of 20 minutes) @100 °C. - Heating time 25 to 250 °C from ambient temperature: 50
minutes. - Power supply: 230 VAC @50-60 Hz.
- Current: 5A.
- Oil capacity: 350ml 50 Cost (Silicon Oil)
- Sound: Less than 30 dB
- Diameter : 50mm
- Depth : 100mm
- Dimensions:- 270mmx240mmx170mm
- Weight: 10.4 Kg without oil.(MS BODY)
Standard Accessories
- Power cord
- litters (optional if ordered.)
- Carry bag (optional if ordered)
- Power cord Silicon Oil 50 CST.
- litters (optional if ordered.)
- Carry bag (optional if ordered)
