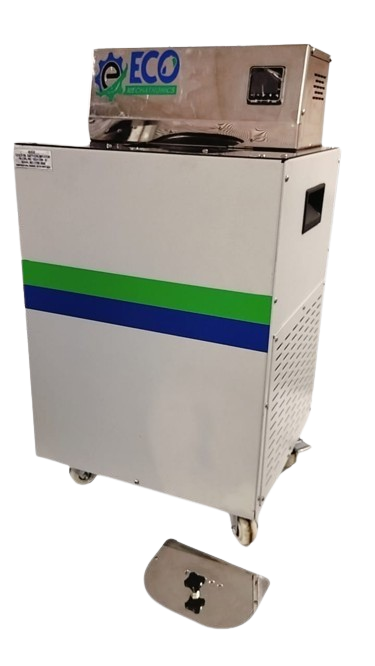

LIQUID BATH
RANGE : (-20 TO 100°C ) | MODEL NUMBER:- ECO/COB-20
Application
In Calibration laboratories for the calibration of small , odd-shaped sensors hermometers.For On site Calibration. Testing laboratory of RTDs and thermocouples. Processindustry in-house calibration.
- Fast heating and cooling
- High accuracy and stability.
- Low weight and compact design.
- Simple operation.
- Temperature Range: (-20 to 100°C) @25°C
- Display Resolution: 0.1 °C.
- Control Accuracy: Better than +0.2°C
- Thermal in stability:
± 0.09 °C @100 (after stabilization time of 15 minutes).
+0.08 °C (-20 °C (after stabilization time of 15 minutes). - Thermal Non-uniformity (Radial):
±0.2 °C (after stabilization time of 15 minutes) @100°C. - Stabilization Time/settling time: 15 minutes after set
point is achieved. - Time to reach to 100°C from ambient temperature: 45
minutes - Time to reach to ambient to -20°C temperature: 40
minutes. - Power supply: 230 VAC @50-60 Hz.
- Current: 6A.
- Power Consumption single phase, 1000 Watt
maximum. - Oil vessel capacity: 3 Liter methanol &50 CST. (Silicon
Oil). - Sound: Less than 30 dB.
- Enclosure Metal (MS)(SS) Powder Coated.
- Weight: 33Kg without oil.
Standard Accessories
- Standard Delivery instrument:1no.
- Power Cable: 1nos
- Each User Manual: 1no.
Testing Environment
- Temperature:- 0 to 40 °C
- Humidity: 30% RH to 85% RH
- Controller.
- Power Socket .
- Power Cable.
- Silicon Oil & Methanol
