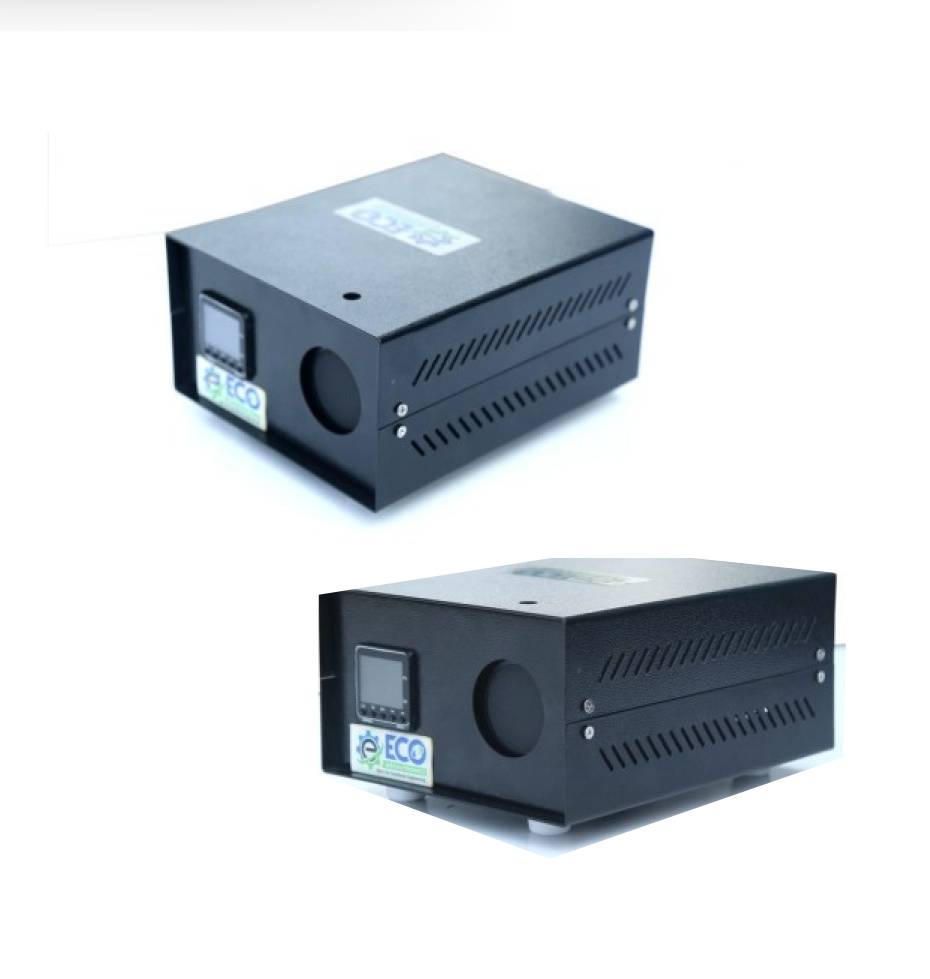

INFRARED BLACK BODY IR CALIBRATOR
RANGE : 50°C TO 500 °C | Model Number:- ECMA/IR/1008
Application
- In Calibration laboratories for the calibration of
small, odd-shaped sensors and thermometers. - For On-site Calibration.
- Testing laboratory of RTDs and thermocouples.
- Process industry in-house calibration.
- Dry block.
- Fast heating and cooling
- High accuracy and stability.
- Low weight and compact design
- Simple operation.
- Business Type: Manufacturer, Exporter, Supplier, Retailer, Wholesaler
- Temperature Range: 50°C to 500°C @25°C
- Emissivity of: 0.95
- Emissive Area: 50mm
- Emissive Area Uniformity: ±2 °C at 400 °C
- Emissivity: 0.95
- Thermal Stability: ±0.4°C At 100°C , ±0.5°C At 300°C, ±0.6°C At 500°C
- Thermal Uniformility : ±0.9°C At 100°C , ±1.0°C At 300°C , ±1.5°C At 500°C
- Accuracy: ±0.8°C
- Display Resolution: 0.1°C
- Warm-up time: 25 min
- Cooling Time: 45 min (500 to 50°C)
- Ambient Condition: Humidity 35 to 85% (non-condensing)
- Temperature: 5 to 35 °C
- Power Supply: 230VAC (50-60Hz)
- Current: 4.7A
- Head Dimensions: WxHxD (mm³): 250mmx130mmx220mm
- Weight: 5.7 kg
Standard Accessories
- Instrument: 1no
- Power Cable: 1no
- Carrying Bag: 1no
- Operating Manual: 1no
Testing Environment
- Temperature: 0 °C -45 °C
- Fuse Rating: 10A
- Non-Condensing:
- Controller.
- Power Socket .
- Power Cable.
